Location：

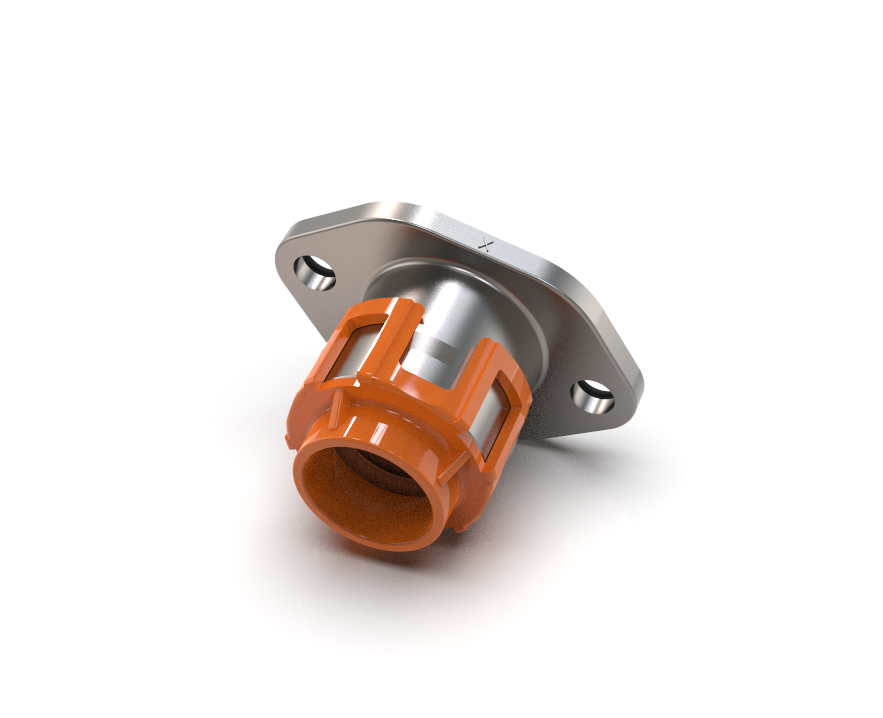

This document mainly contains our two/three-core through-hole connectors Relevant data of FPT208, FPT308, FPT design rated voltage is 1000VDC, rated current is 200A max., it has 360 shielding function, and at the same time meets the car's demanding waterproof requirements; FPT208 can be connected to 16mm, 25mm, 35mm, 50mm lines verified by our experiments Cable; FPT308 can be connected to 16mm, 25mm, 35mm, 50mm cables verified by our experiments; At the same time. The products are mainly used in motors, generators, motor controllers and other scenarios.
Safety Precautions:
- This product is used in high voltage and high current environments.
- Please install, use and maintain the product correctly; incorrect use of the product may cause serious injury and loss.
- If the product is abnormal, such as being modified or damaged, please do not continue to use it to avoid accidents.
- Do not insert or remove the connector when the product is powered on.
- Do not overload for a long time to avoid potential safety hazards.
Basic parameters:
| Rated current（DC） | 200A Max. |
| Rated voltage（DC） | 1000V DC |
| Temperature class | -40°C to +140°C(Including temperature rise) |
| Fire-proof level | UL94 V-0 |
| Service life (times) | 100 Min. |
| Safety protection level | IP68 |
| shield | Have |
| Key position | 1 types（N） |
| Cable | 16~50mm2 |
